The 16-Seat Starry-Sky Carousel is a medium-sized commercial electric amusement ride developed for global scenic spots, cultural-tourism parks, shopping-mall plazas, commercial pedestrian streets and mobile traveling carnival projects. It features star-themed decorative eaves and surrounding screens made of FRP with adhesive tape decoration, equipped with 16 spotted horse-shape FRP riding seats. The lighting system supports customized color configuration, and it is fitted with industrial frequency-conversion drive system, solid rubber movable tires and wireless remote-control unit. The overall dimension, decorative patterns and lighting scheme can be fully customized according to project requirements. Suitable for visitors aged 2-14, the equipment adopts 380V power supply. All structural and electrical components comply with international standards including CE, EN1176, TUV, SGS, ASTM and ISO9001. With star-element styling, relocatable chassis and adjustable lighting effect, this unit delivers stable amusement solution for both fixed scenic venues and mobile event operations.
Star–themed Appearance Design, Distinct Day–night Visual Performance

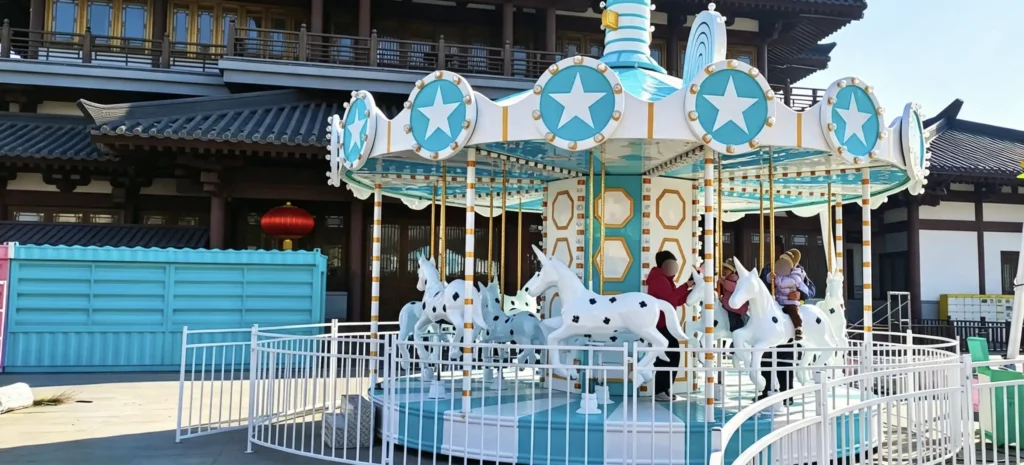

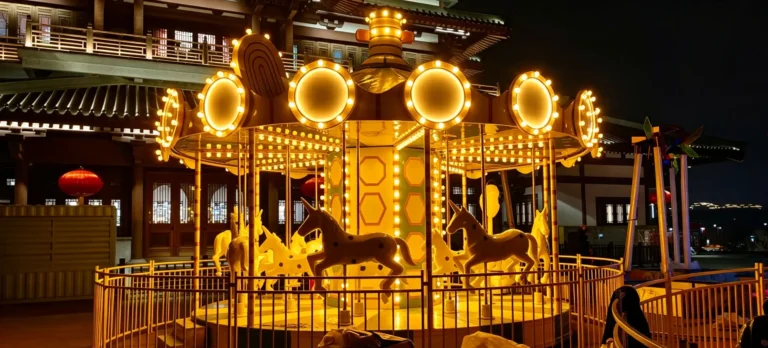

This carousel adopts exclusive star-sky theme styling. Eaves and surrounding screens are constructed of FRP with star-pattern adhesive tape decoration, while riding horses are decorated with spotted adhesive tape. It presents fresh blue-white tone under daylight; after nightfall, the customizable lighting system provides various light-color options to create gorgeous night-scene effect.
The complete set consists of FRP star-decorated eaves, FRP surrounding screens, support columns, rotary platform, 16 spotted-pattern horse seats, central column, heavy-duty base chassis, control cabinet, adjustable-color lighting assembly, solid rubber tires and frequency-conversion remote-control system. The site contains two functional zones:
- Central Rotary Riding Zone: 16 spotted horse seats are evenly arranged on rotary platform. The frequency-conversion system realizes soft start, stepless speed regulation and gentle stop. All edges are fully rounded to avoid collision risk. Open-style peripheral structure enables guardians to watch children without visual blind spots, applicable for visitors from 2-14 years old.
- Peripheral Waiting & Buffer Zone: A safety buffer of no less than 1.5 m shall be reserved around the whole unit for passenger queuing and accompanying rest, preventing crowd congestion in peak-flow periods.
Customizable lighting colors enrich night-time visual expression and extend effective business hours for venues.
380V Power Supply & Movable Solid–tire Chassis, Fit Fixed–site and Mobile Business Scenarios
The carousel adopts 380V industrial power supply, matching power condition of scenic spots, shopping-mall plazas and large-scale commercial venues. The integrated chassis is equipped with wear-resistant inflation-free solid rubber tires. The whole machine can be hoisted for integral relocation or split into modular packages for sea container shipment, which adapts to seasonal scenic parks, temporary commercial festivals and traveling carnival projects with frequent transfer demands.
Main load-bearing frame is thickened hot-dip galvanized steel pipe with electrostatic anti-rust powder-spray finishing. Eaves, screens and horse seats are high-density waterproof FRP with decorative adhesive-tape surface treatment. All metal edges are rounded-off to eliminate scratch hazard. Equipped with industrial frequency converter and wireless remote controller, the unit runs stably with low noise. Operators can remotely complete start-stop operation and speed adjustment, avoiding sharp acceleration or emergency braking to guarantee comfortable riding experience. Different components enjoy graded 1-3-year warranty to reduce long-term maintenance expenditure for operators.
Age–adapted Safe Layout, Improve Venue Reception Capacity
Human-oriented structural design fits multi-age visitors:
• 2-14-year-old visitors: Each horse seat meets standard safety load requirement; rotary speed can be adjusted within safe range without high falling risk during operation.
• Mobile-operation scenario: Inflation-free solid rubber tire base supports repeated disassembly, loading and transportation for traveling carnival and pop-up commercial events.
Riding zone and waiting buffer zone are reasonably separated to avoid flow interference during passenger peak. Circular medium-size layout is well-suited for scenic squares, commercial pedestrian streets and municipal public sites. Unique star-sky theme styling enhances the overall landscape effect of project venues.
Full–scale Customization & Export–ready Certificates, One–stop Service for Global Buyers
Full non-standard customization service is available. The design team provides exclusive amusement schemes according to client demands. Customers can adjust overall dimension, surface decorative tape pattern, lighting color scheme and other details freely. Complete certification documents including CE, TUV, SGS, EN1176 test report, ASTM certification and ISO9001 factory qualification can be supplied, satisfying document requirements for overseas bidding, business registration and safety inspection.
All assemblies can be split into modular packages for convenient sea transportation and fast field assembly. Each shipment includes printed site-planning drawing, Chinese-English bilingual installation manual, operation guide and complete circuit diagram. Remote-video installation guidance is supported to shorten overseas construction cycle. Our professional themed-playground team supplies full-process services covering render design, mass-production and after-sales technical support for global scenic merchants and commercial operators.
| Model NO.： | CR-16 |
| Unit Size： | Φ600×600CM (diameter × height, customizable) |
| Safety Zone： | 800×800CM (minimum reserved area with 1.5m buffer around) |
| Age Range： | 2-14Age |
| Voltage & Power： | 380V |
| Components： | FRP eaves & screens with adhesive-tape decoration, support columns, rotating platform,16 spotted-pattern horse seats, central column, base chassis, control cabinet,, solid rubber tires, frequency converter, wireless remote controller |
| Material： | Main Frame: Thickened hot-dip galvanized steel pipe + electrostatic anti-rust spraying |
| Base Chassis: Integral heavy-duty steel plate bending structure | |
| Animal seats & Decorations: High-density waterproof fiberglass (FRP) | |
| Surface Treatment: Anti-UV outdoor automotive-grade paint | |
| Tires: Wear-resistant solid rubber tires (no inflation needed) | |
| Hardware Screws: 304 Stainless Steel anti-theft lock screws | |
| Lighting：Customizable light colors | |
| Eaves & screen:Painted fiberglass | |
| Color： | All parts color can be modified. Please send a mail to ask for color sheet range. |
| Price Terms | EXW Factory / FOB Ningbo, CFR, CIF. |
| Payment | T/T, 30-50% in advance. Balance before shipment; LC at sight. |
| Applied Range | Kindergartens, residential area, supermarket, mall, amusement parks and other outdoor public places. |
| Function | Rotating ride, soft start & stop, speed adjustable, RGB lighting effects, remote control operation. |
| Design ability： | With strong team support of 15 members of professional designers. We can design any customized outdoor playground according to your requirement. |
| Warranty Time： | 1-3 year for different component. |
| Installation Support： | There will always be a print-out ground plan and installation instructions in English-Chinese along with every delivery. |
| Advantage： | A: Industrial-grade variable frequency drive system, stable and smooth operation, low noise ≤55dB |
| B: UV-resistant, static-proof, sunlight-resistant and crack-resistant FRP material | |
| C: Security and Environmental Friendly, all materials pass international safety standards | |
| D: Metal parts proceeded through special process, surface with antirust PVC coating / Powder Coating | |
| E: Solid-tire base design, easy to move and relocate for mobile-business scenarios | |
| Certificate： | ASTM, CE, TUV, EN1176, SGS, ISO9001 |
